Ram 1500 Double Pop-Up Truck Cap Camper with Rooftop Tent
A 295–375 lbs aluminium truck cap with a double pop-up rooftop tent, built for the 2019–2027 Ram 1500. Both ends of the roof lift, for about 40% more room inside than our Single Pop-Up. Locked-up gear storage Monday to Friday, a memory foam bed with 360° views on the weekend.
- Double pop-up roof tent: the main wedge lifts at the rear and a second hatch lifts at the cab end
- About 40% more room inside than our Single Pop-Up, with bug-mesh windows on every side
- 50" × 100" memory foam mattress included
- Climb into the tent from inside the truck cap or from outside
- 295–375 lbs — easy on your Ram 1500's payload
- Locking side MOLLE panels for recovery gear, tools and storage
- Matte black powder-coated 6000-series aluminium with an integrated third brake light
Specifications
| Fits | 2019–2027 Ram 1500 · 5'7" and 6'4" bed |
| Weight | 295–375 lbs (varies by truck) |
| Mattress | 50" × 100" memory foam, 8 cm thick, removable stretch cover |
| Closed tent height | 10" over the cab |
| Construction | 6000-series aluminium extrusions, laser welded, with aluminium composite panels |
| Finish | Class A matte black powder coat, stainless hardware |
| Roof load | 175 lbs dynamic |
| Tent roof | Composite honeycomb panel |
| Tent fabric | Mildew-proof polyester, 4,750 mm PU coating, removable |
| Roof tent | Two pop-up sections: rear wedge plus a second hatch at the cab end |
| Tent windows | Bug mesh on every side, 360° panoramic views, zip-on rain screen |
| Cap windows | 7 mm tinted acrylic |
| Tent access | Interior and exterior (dual pass-through) |
| Lift system | Smart lift with interlocking seals |
| Side panels | Locking MOLLE panels, two locks per panel |
| Rear panel | Two locks, operated from inside |
| Seals | 3M bulb seals at bed rails and windows, T-seal at tailgate |
| Third brake light | Integrated, wiring harness included |
| Warranty | 18-Month |
What's included
Lead time & ordering
Installation & delivery
From driving to sleeping in three moves

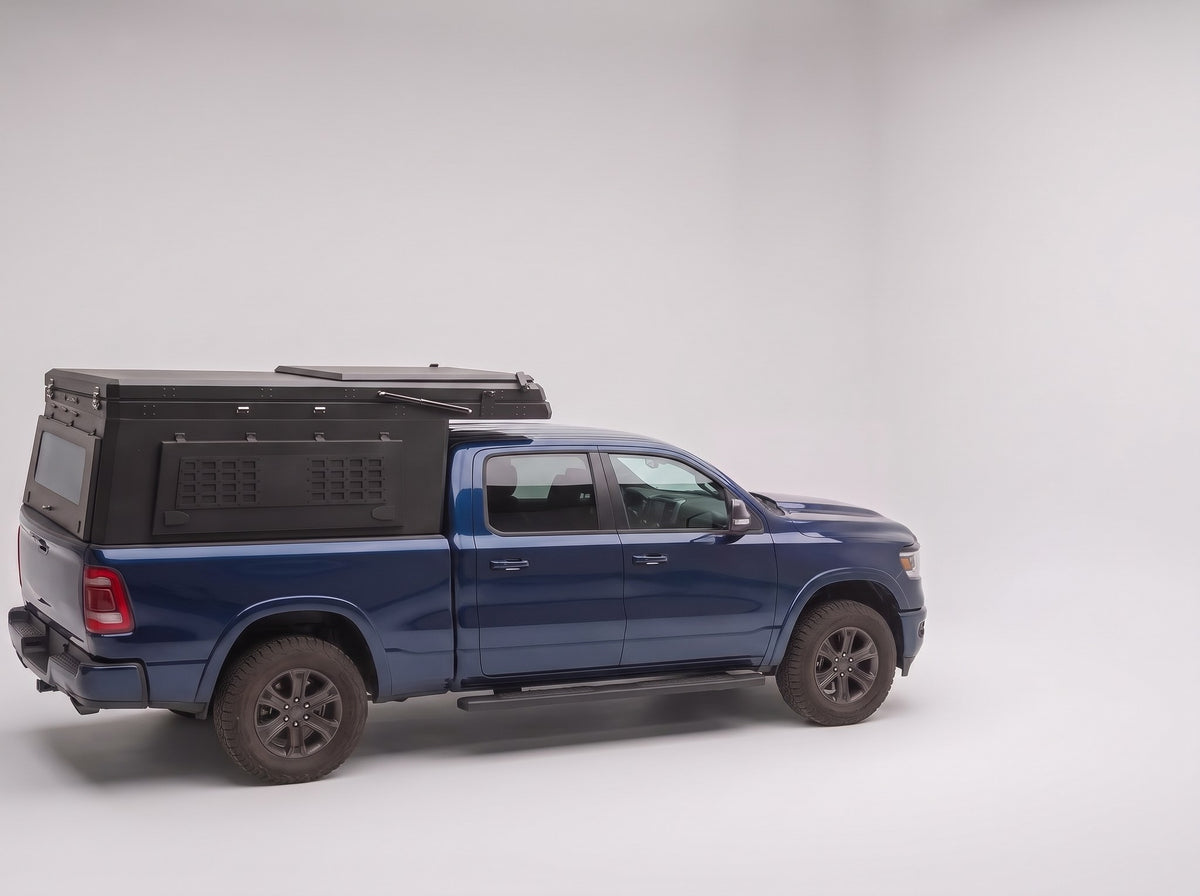

Closed for the drive
The tent packs down to about 10" over the cab, and everything in the bed stays locked and sealed.

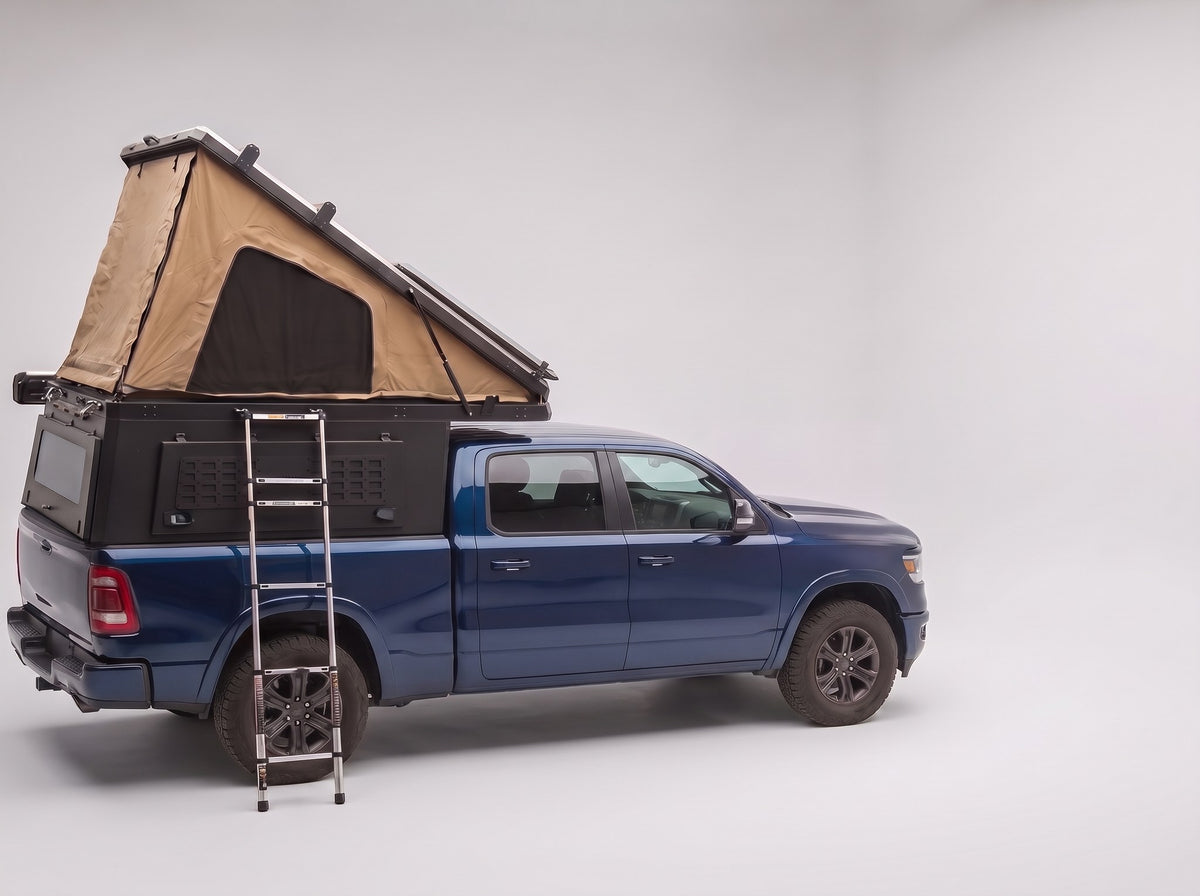

Lift the main roof
Release the latches and the wedge roof rises on its gas struts. The bed is already made.

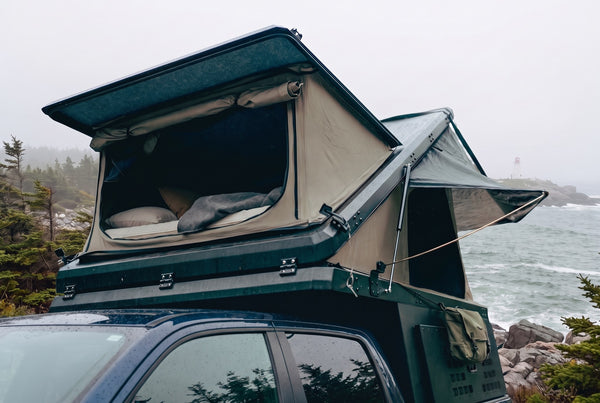

Pop the second hatch
Push up the hatch at the cab end for about 40% more room and a window at both ends of the bed.

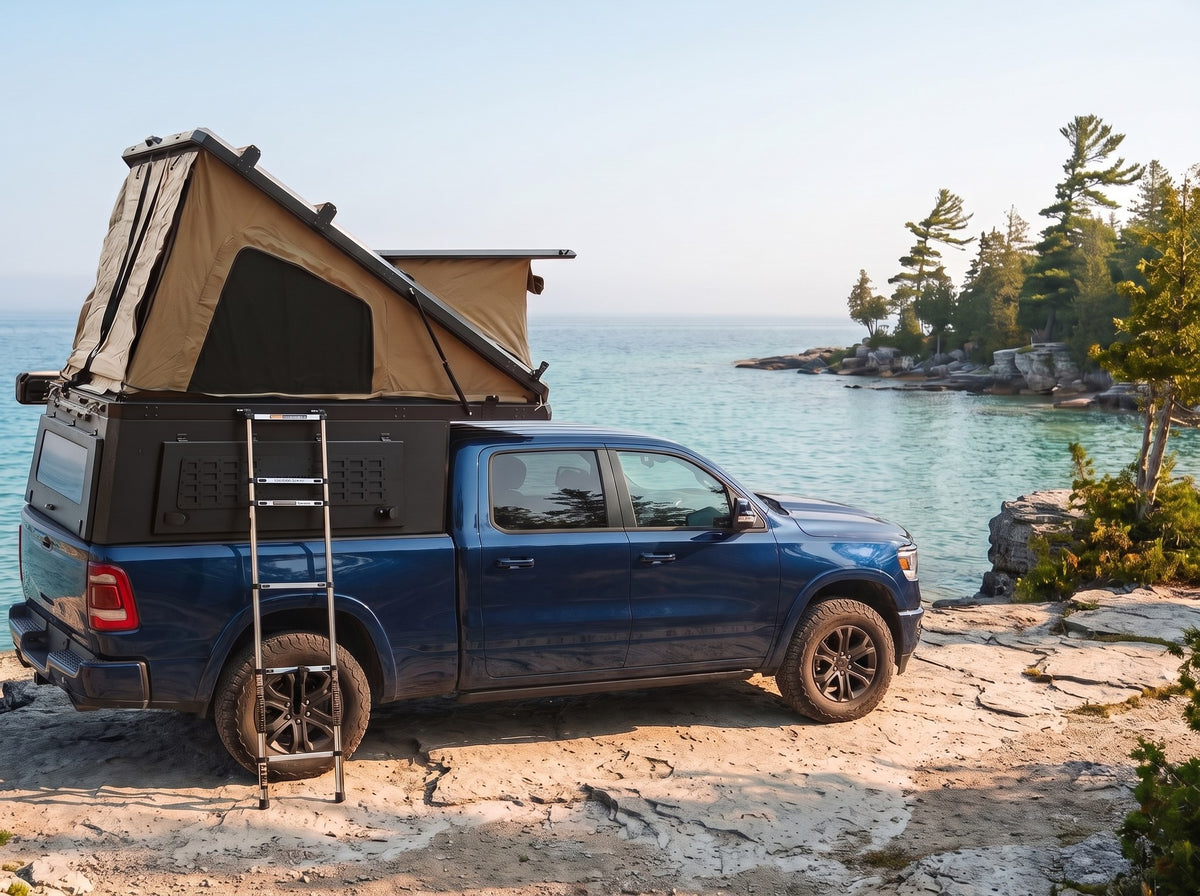

Turn your Ram 1500 into a base camp

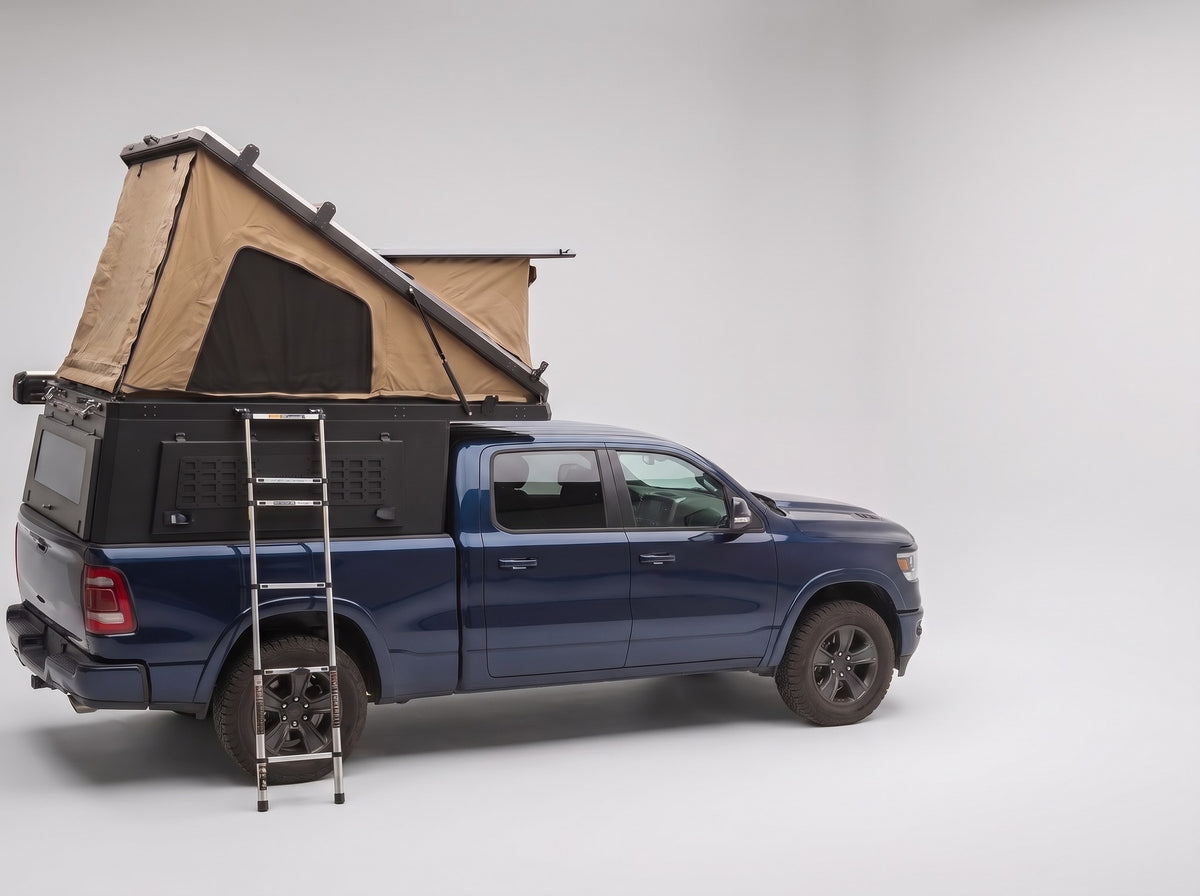

Two pop-ups, one big bedroom
The main roof lifts into a wedge and a second hatch pops up at the cab end, so there's headroom and a window at both ends of the bed. About 40% more room inside than our Single Pop-Up, and no poles to thread.

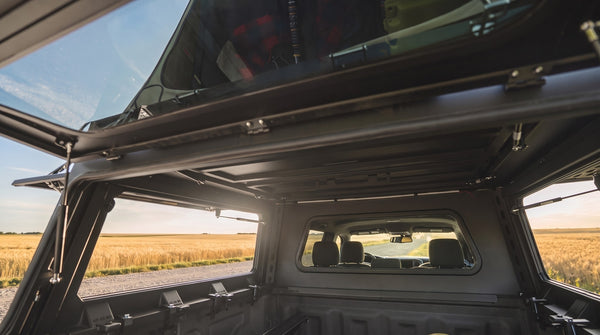

Inside or outside access
Climb up from inside the truck cap when the weather turns, or use the exterior ladder. Both ladders are included.

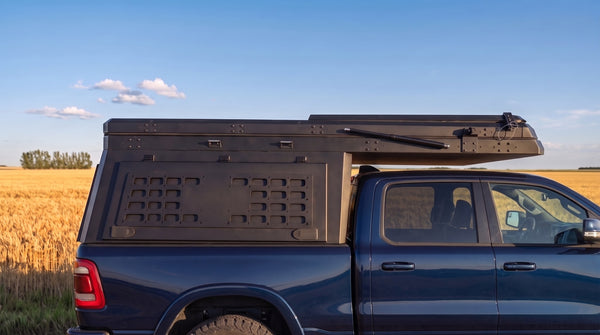

Locking MOLLE side panels
Both side hatches lock with two locks each and carry a laser-cut MOLLE grid for recovery gear, tools and storage. Reach into the bed from the side without climbing over the tailgate.

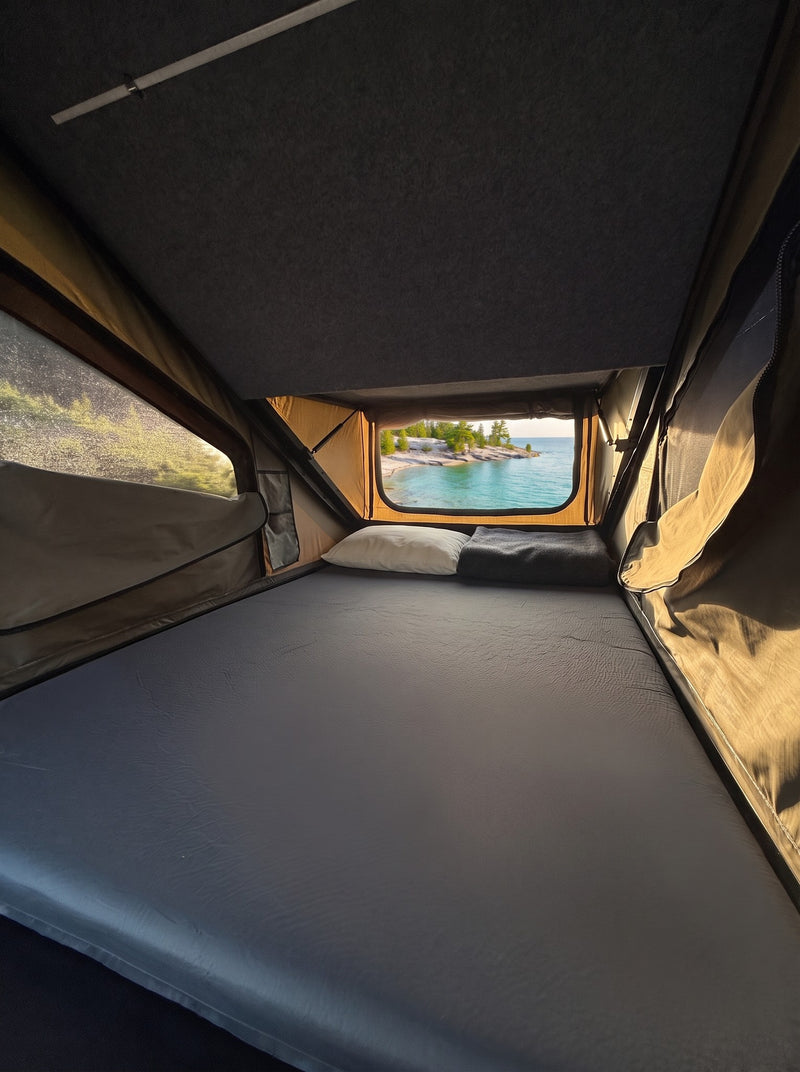

A real bed, not a sleeping pad
A 50" × 100" memory foam mattress comes with every camper, under mildew-proof tent fabric with bug-mesh windows. It's 8 cm thick with a removable stretch cover.
What you're looking at
1
2
3
4
5
6
7
- Main wedge roofA composite honeycomb panel that lifts at the rear on gas struts.
- Second pop-up hatchLifts at the cab end for about 40% more room inside.

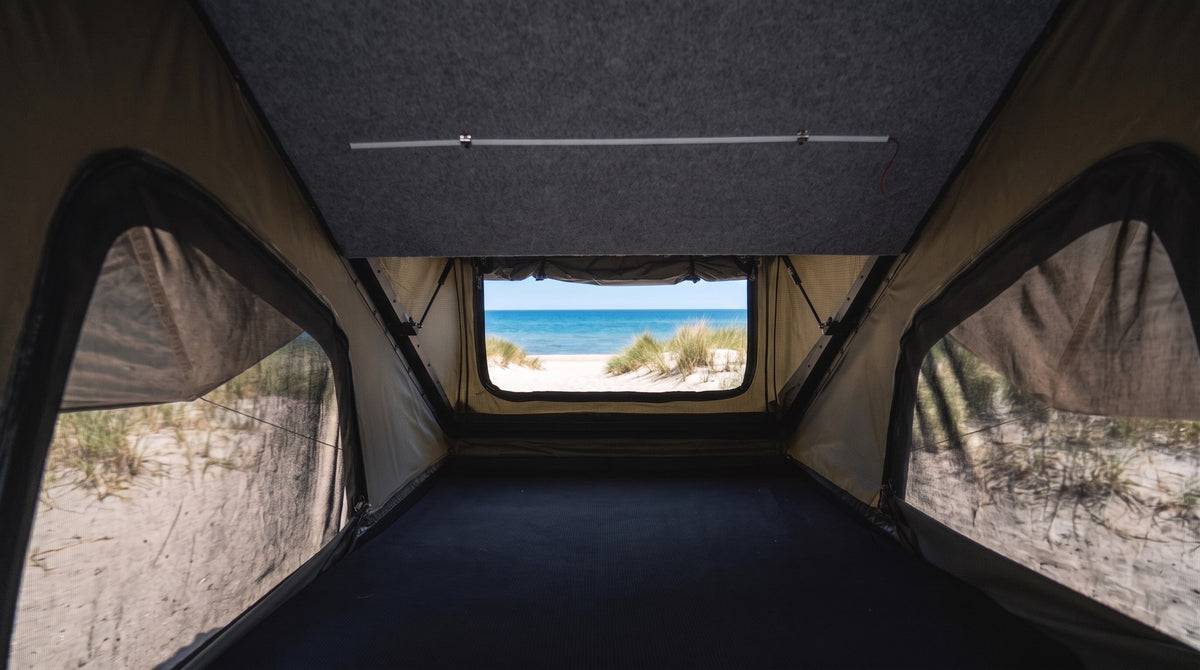

- Bug-mesh windowsOn every side for 360° views, each with a zip-on rain screen.
- Locking MOLLE side hatchesBoth sides open for bed access and carry a laser-cut MOLLE grid. Two locks per panel.

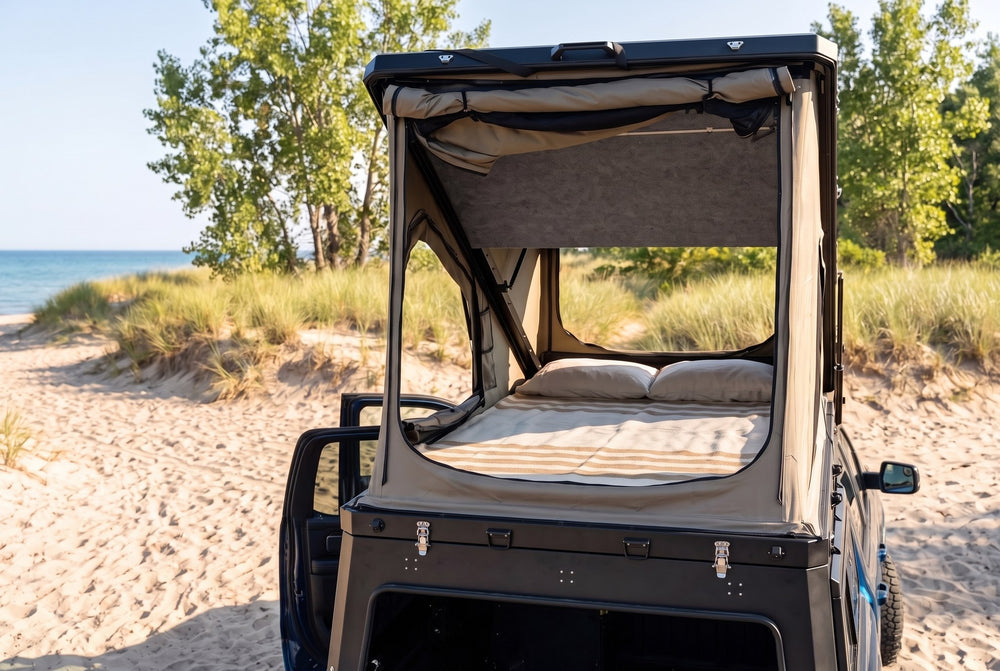

- Rear hatch7 mm tinted acrylic window, with two locks worked from inside.
- Low-profile tent packAbout 10" tall over the cab when it's closed.
- Ladders includedAn exterior ladder, plus an interior ladder for the pass-through from the bed.

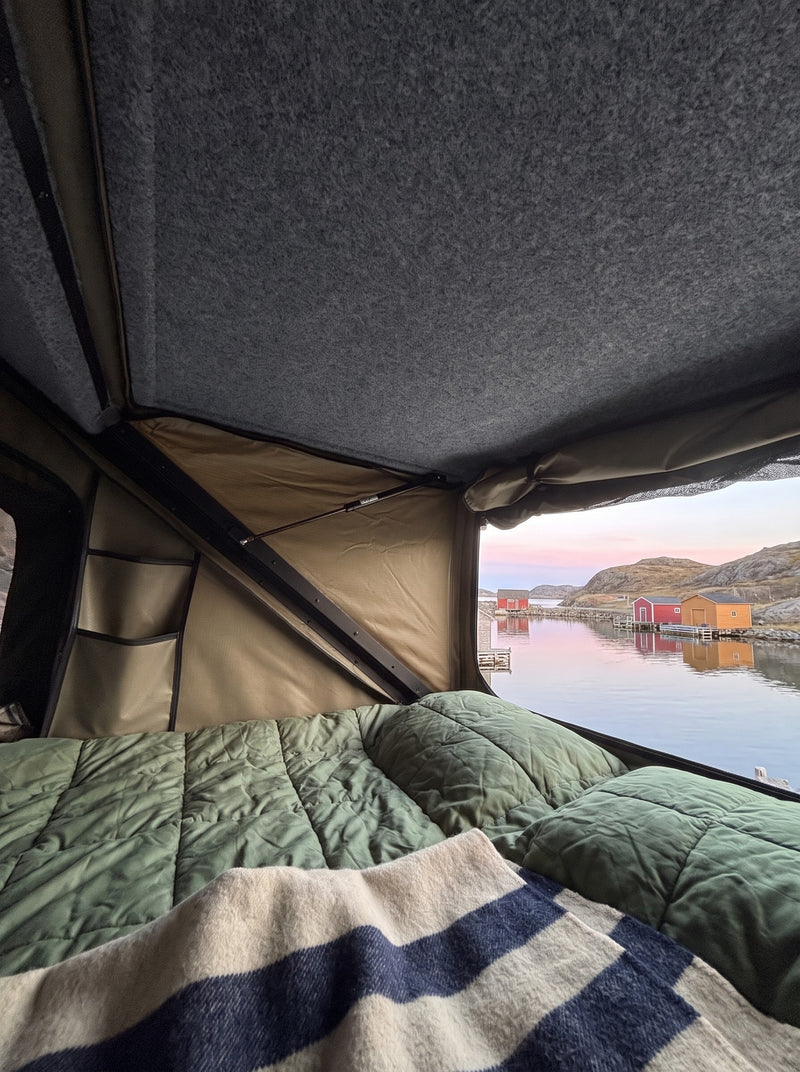

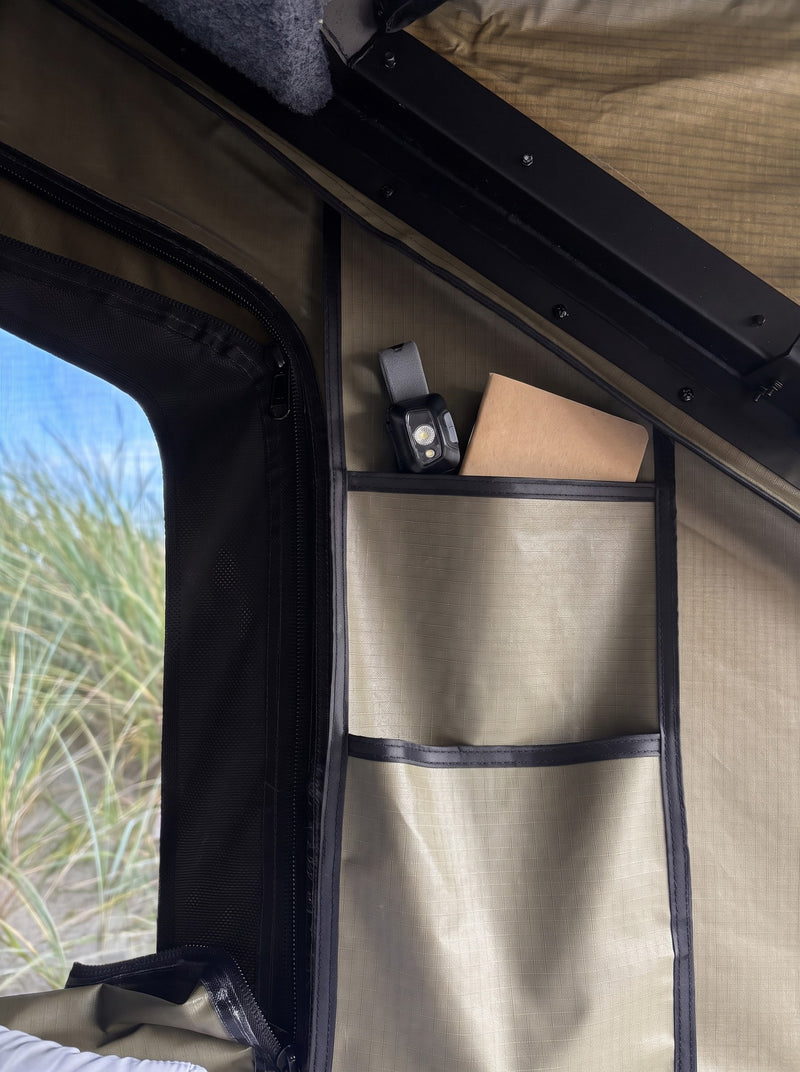

Inside the tent
Double Pop-Up dimensions
- 50" × 100"Sleeping area (inside)
- 8 cmMemory foam mattress
- 10"Closed tent height over the cab
- 295–375 lbsCamper weight, by truck
- 175 lbsDynamic roof load
- 5'7" and 6'4"Truck cap is built to your bed length

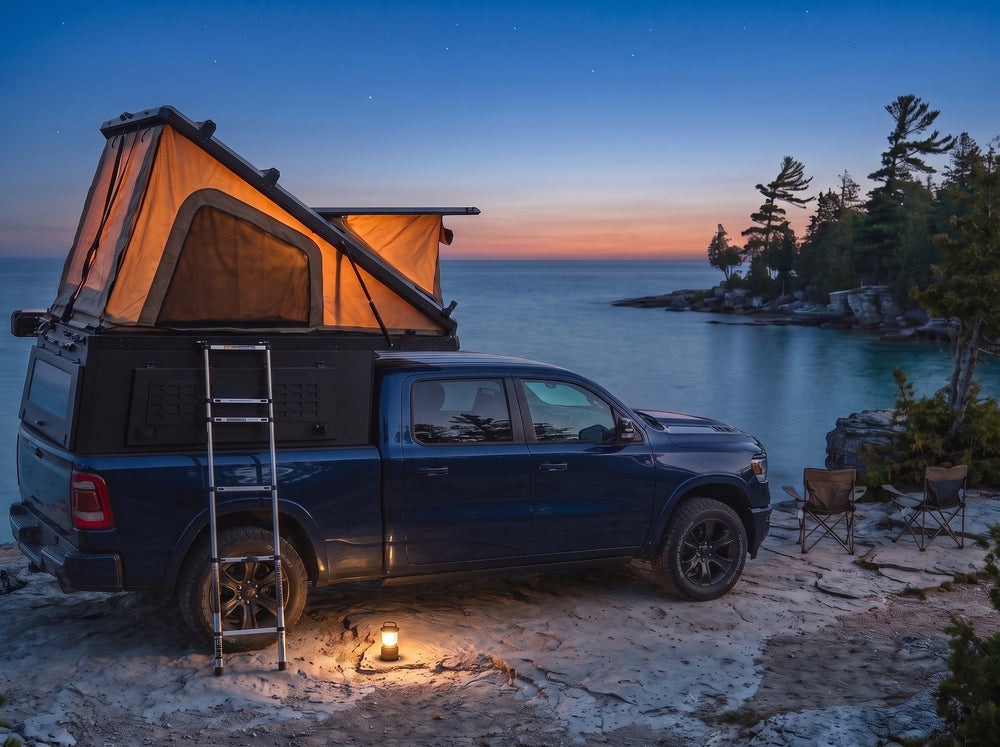

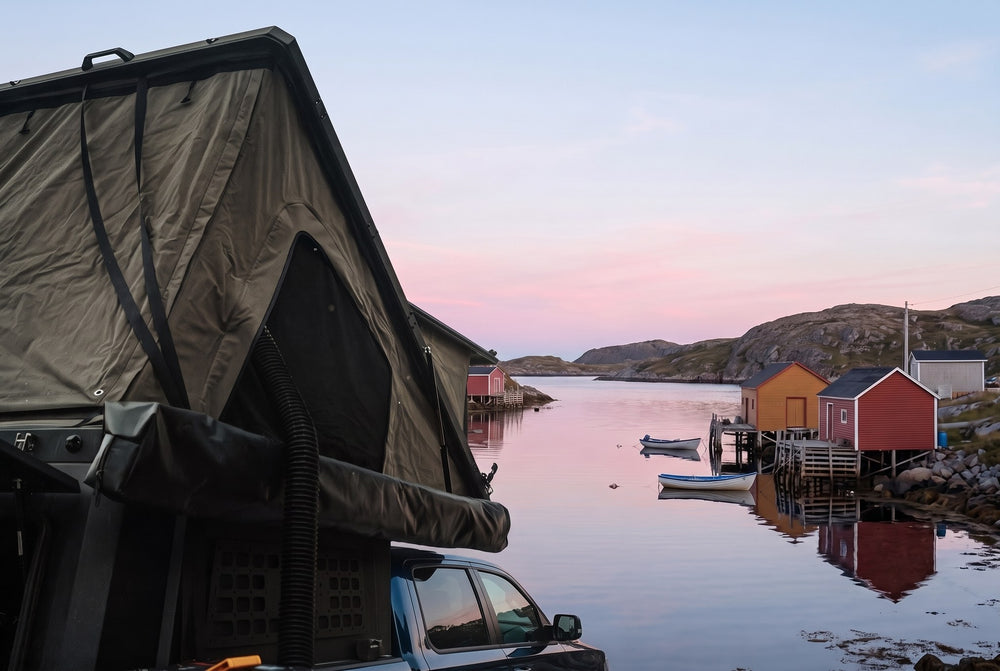

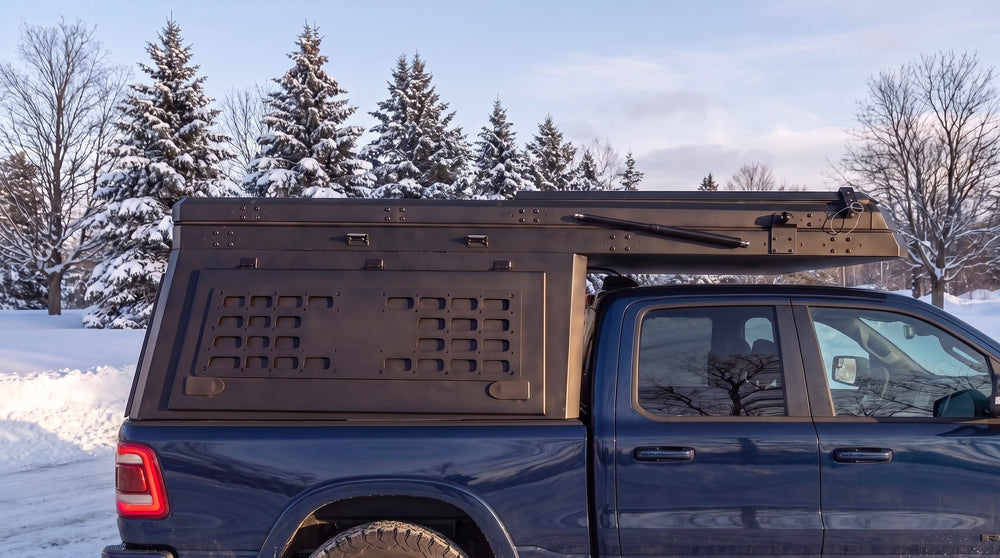

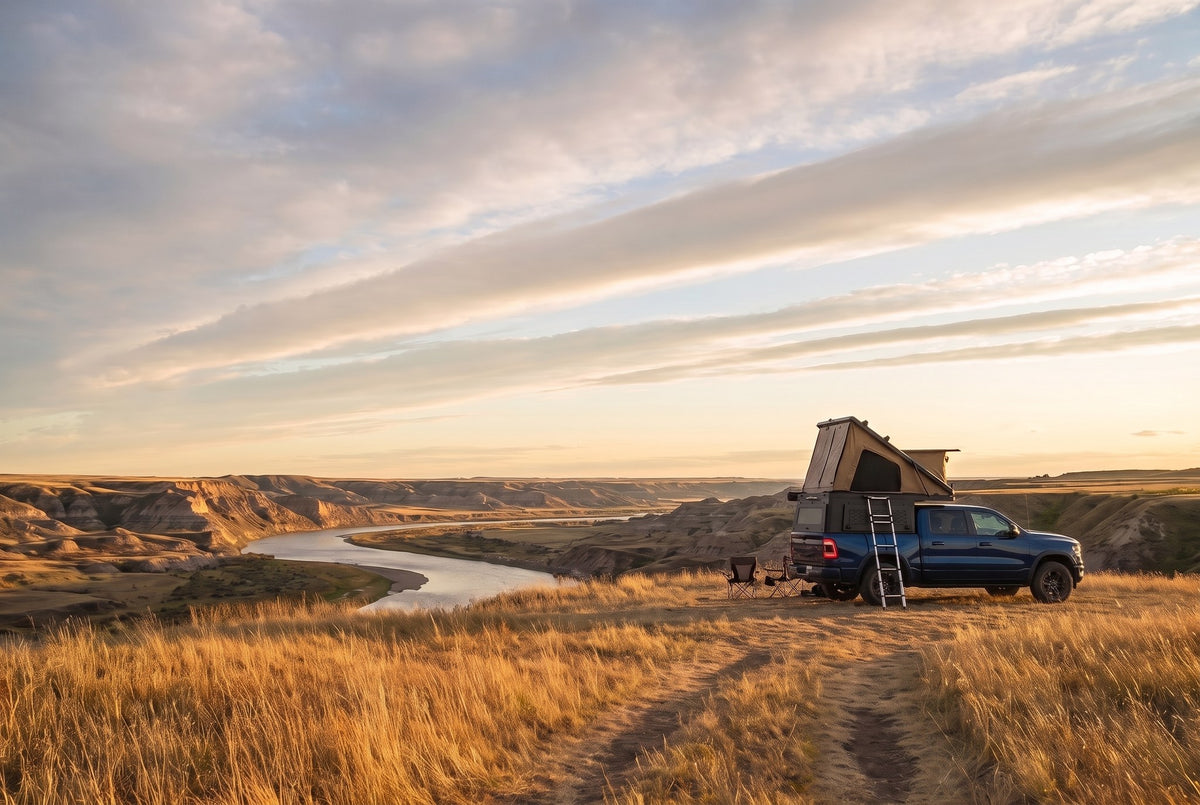

Out there with the Double Pop-Up
Single Pop-Up or Double Pop-Up?
Same aluminium truck cap, same bed, same weight. The difference is how the roof opens and how much room you get up top.

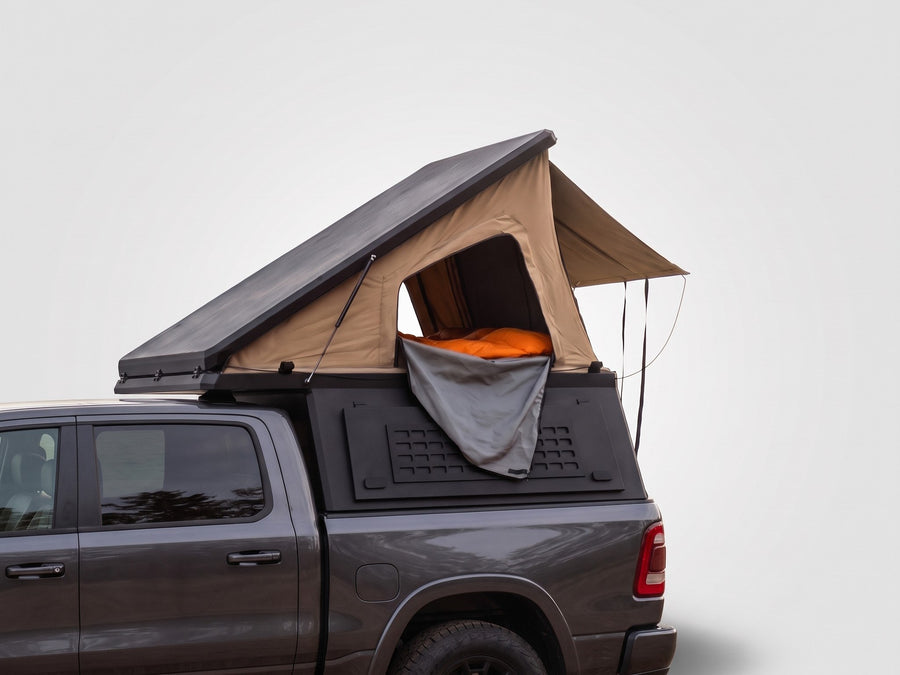

Single Pop-Up Truck Cap Camper
- RoofOne roof panel that lifts at the rear
- HeadroomTall at the rear, tapering down toward the cab
- RoomOur standard layout
- Views270° bug-mesh windows
Double Pop-Up Truck Cap Camper
- RoofMain wedge plus a second pop-up hatch at the cab end
- HeadroomTall at the rear, and raised again at the cab end
- RoomAbout 40% more room inside
- Views360° bug-mesh windows, one on every side
The same on both: 50" × 100" memory foam bed · 295–375 lbs · about 10" tall when closed · locking MOLLE side hatches · interior and exterior ladders · 18-month warranty.
Truck cap camper vs. roof-top tent vs. slide-in camper
| Feature | TruckTon Double Pop-Up | Roof-top tent on a bed rack | Slide-in truck camper |
|---|---|---|---|
| Weight on the truck | 295–375 lbs | Lighter, but the bed stays open | Typically 1,000 lbs or more |
| Gear storage | Enclosed truck cap with locking side panels | Open bed, gear exposed | Bed is taken up by the camper |
| Getting into bed | From inside the truck cap or outside | Outside ladder only | Walk-in |
| Daily driving | Stays on; low profile when closed | Stays on; tent sits up in the wind | Usually removed between trips |
| Bed included | 50" × 100" memory foam | Varies by tent | Yes |
How ordering works
- 1
Choose your truck
Pick your year and bed length above and place your order. Rather talk first? Call 1-888-651-3091.
- 2
We confirm the build
We contact you to check your Ram 1500's details before anything is built.
- 3
Your camper is built
Every camper is built to order. Estimated lead time is 16–20 weeks from approved order confirmation.
- 4
Installed and ready
Professionally installed in Burlington, Ontario, so you drive away ready to camp.
Customer reviews
Ram 1500 truck camper FAQ
Will it fit my Ram 1500?
What's the difference between the Double Pop-Up and the Single Pop-Up?
How much does it weigh, and what does that do to my payload?
How big is the bed?
Can I get into the tent from inside the truck bed?
Can I carry gear on the roof?
What about rain and bugs?
How long until I get my camper?
How is it installed?
What's the warranty?
The truck cap camper built for Canadian Ram 1500 owners
The TruckTon Double Pop-Up is a truck cap camper (you'll also hear it called a canopy camper, topper camper, truck bed camper or pop-up truck camper): an aluminium truck cap with a double pop-up rooftop tent built into the lid. On a Ram 1500 it replaces a bed rack and roof-top tent with one low-profile unit, and it weighs a fraction of what a slide-in truck camper does.
Vehicle-specific fit for the 2019–2027 Ram 1500
Every camper is built to order for your Ram 1500's model year and bed length (5'7" and 6'4"), so the fit is specific to your truck rather than a universal topper. At 295–375 lbs it leaves most of your payload for people, water, fuel and gear.
Made for weekends in Ontario, the Rockies and everywhere between
Mildew-proof tent fabric with a 4,750 mm PU coating, interlocking roof seals, bug-mesh windows with 360° views and an included rain fly cover the realities of Canadian camping, from blackfly season in cottage country to shoulder-season trips out west. Locking MOLLE side panels carry recovery gear and keep the bed reachable from the side.
Built to order, with an estimated lead time of 16–20 weeks, a 18-month warranty and professional installation in Burlington, Ontario. Browse all TruckTon truck campers or see our other Ram truck accessories.
