Arcane Warrior ULTRARIDGE Truck Bed Rack
- Rides on a roll-up tonneau cover with T-slot rails
- 551 lb dynamic / 838 lb static / 331 lb off-road
- High (14.2"–20.5" adjustable) or Mid (8.9") height
- Mid-size (Tacoma, Gladiator, Ranger) or full-size (F-150, Tundra, Ram 1500)
Specifications
| Static load | 837.8 lb (380 kg) |
| Dynamic load | 551.2 lb (250 kg) |
| Off-road load | 330.7 lb (150 kg) |
| High mount (L x W x H) | 16.5" x 9.9" x 14.2", height adjustable 14.2"–20.5" |
| Mid mount (L x W x H) | 16.5" x 8.9" x 8.9" |
| AL crossbar (mid-size) | 65.5" x 4.2" x 1.7" |
| AXL crossbar (full-size) | 70.2" x 4.2" x 1.7" |
| Materials | ADC-12 die-cast aluminium, 6063-T5 aluminium, PA+GF15 nylon |
| Mounting | Roll-up tonneau cover with T-slot rails only |
What's in the box

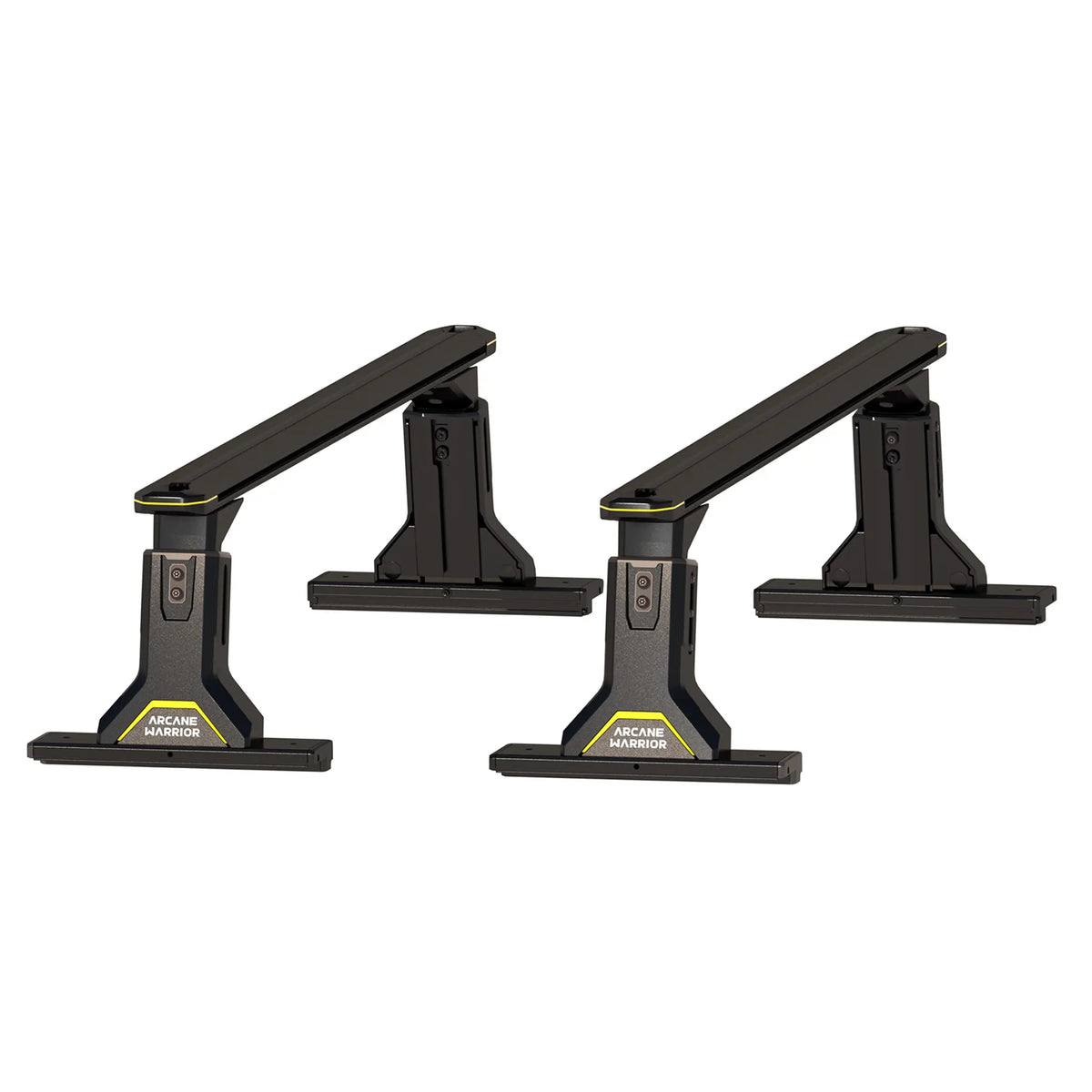

- 4 ULTRARIDGE uprights (High or Mid)

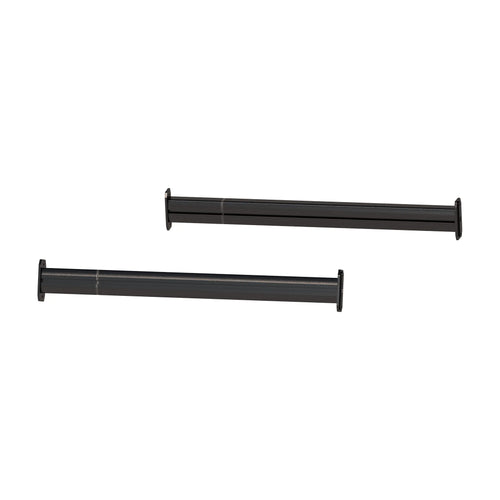

- 2 crossbars (AL or AXL to suit your truck)
- Mounting hardware
Installation
Shipping & returns
A bed rack that keeps your cover

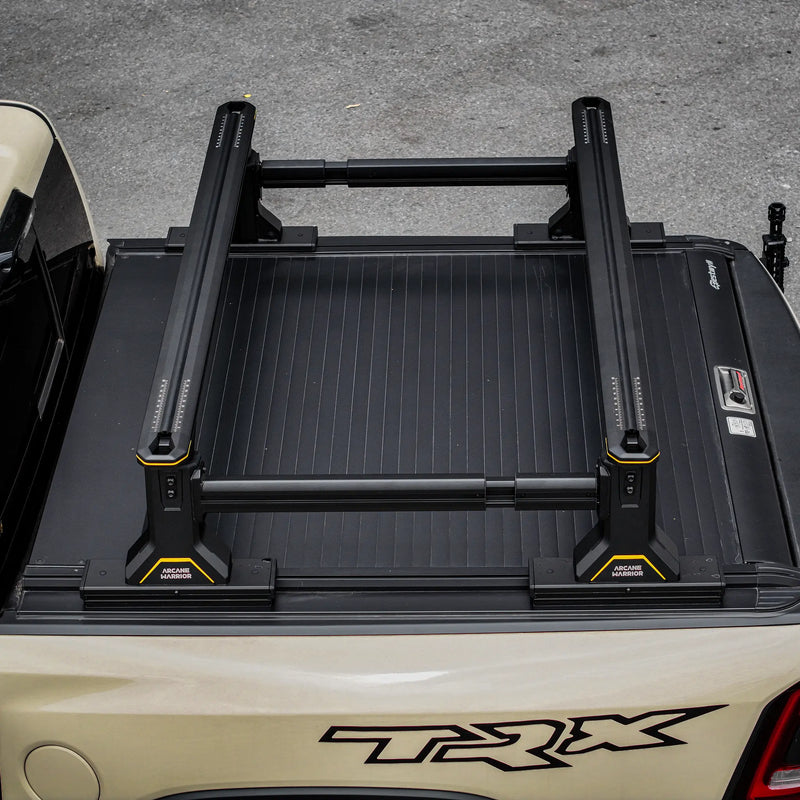

Keep Your Tonneau Cover
Rides on the cover's T-slot rails, so the bed stays covered and locked.

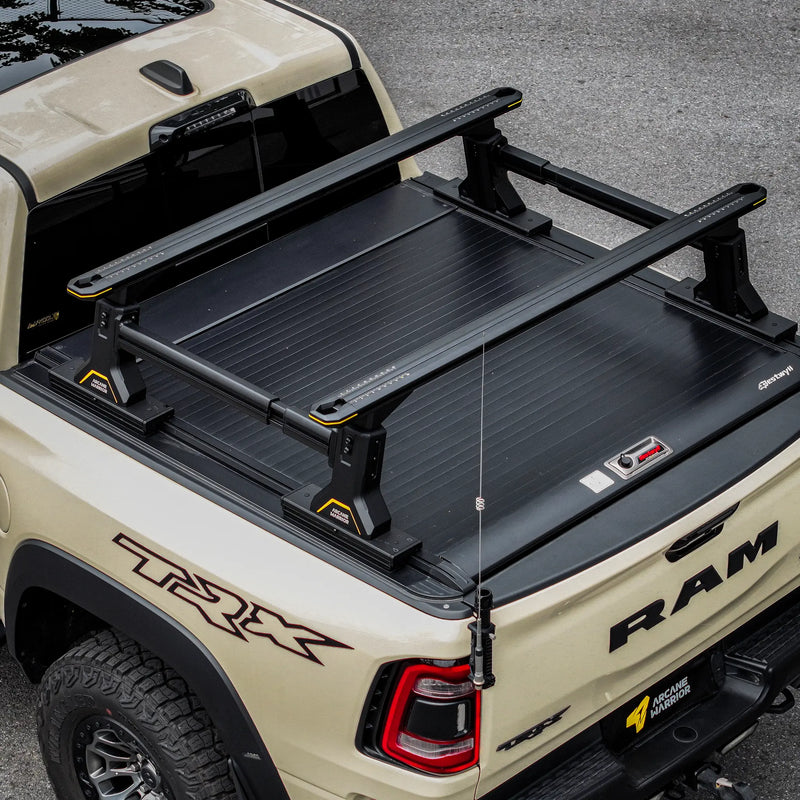

Clamps to T-Slot Rails
No drilling into the bed or rails.

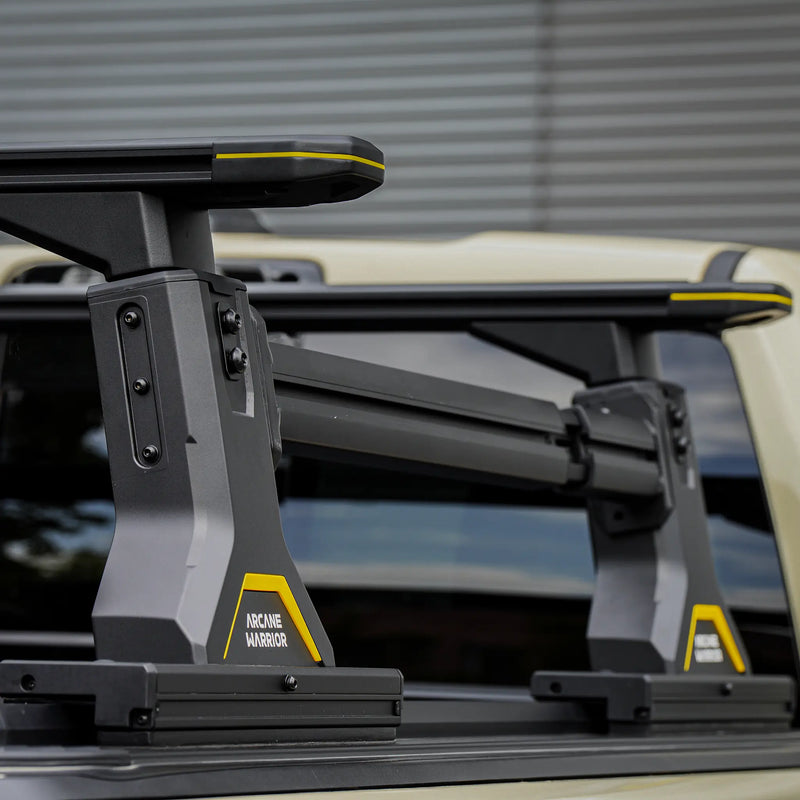

High or Mid Uprights
High adjusts from 14.2" to 20.5" to clear a tent or the cab; Mid sits at 8.9".
Built to Carry
551 lb on the road, 838 lb parked and 331 lb off-road.
SPECIFICATIONS
| Static load | 837.8 lb (380 kg) |
| Dynamic load | 551.2 lb (250 kg) |
| Off-road load | 330.7 lb (150 kg) |
| High mount (L x W x H) | 16.5" x 9.9" x 14.2", height adjustable 14.2"–20.5" |
| Mid mount (L x W x H) | 16.5" x 8.9" x 8.9" |
| AL crossbar (mid-size) | 65.5" x 4.2" x 1.7" |
| AXL crossbar (full-size) | 70.2" x 4.2" x 1.7" |
FITMENT
- Mid-size: Toyota Tacoma, Jeep Gladiator, Ford Ranger (AL crossbars, 65.5")
- Full-size: Ford F-150, Toyota Tundra, Ram 1500 (AXL crossbars, 70.2")
- Requires a roll-up tonneau cover with T-slot rails
- Not sure about your cover? Call 1-888-651-3091
Customer reviews
Frequently asked questions
Do I need a tonneau cover?
Which version fits my truck?
High or Mid?
How much can it carry?
Is shipping free?

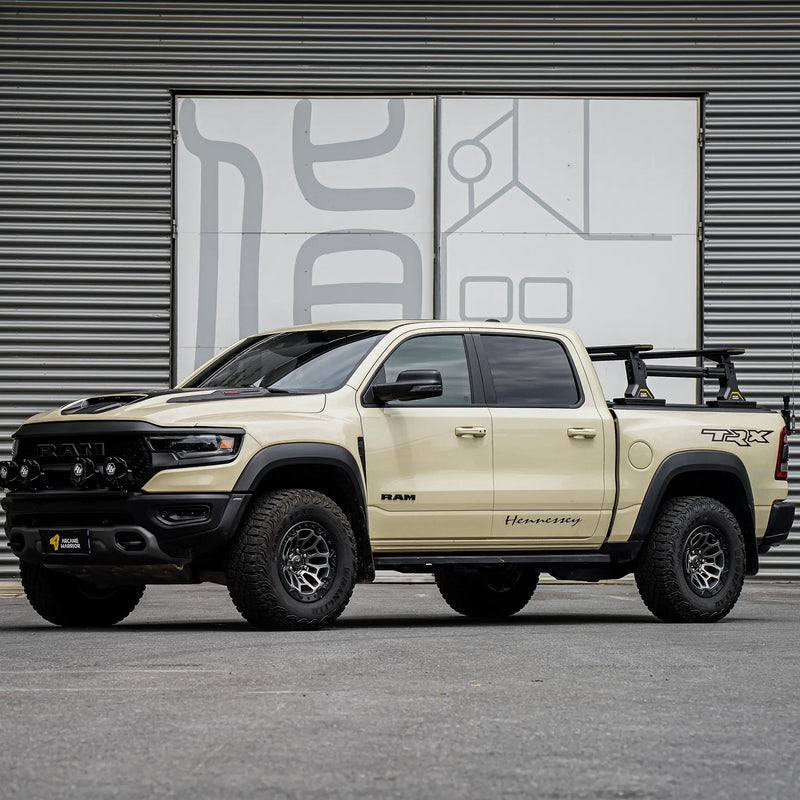

The Arcane Warrior ULTRARIDGE truck bed rack
The Arcane Warrior ULTRARIDGE is a bed rack that rides on top of a roll-up tonneau cover, so you keep a covered, lockable bed and still have somewhere to carry a roof top tent, cases, bikes or lumber. Die-cast aluminium uprights and aluminium crossbars keep it light, and it is rated to 551 lb on the move.
Important: the ULTRARIDGE mounts only on a roll-up tonneau cover with T-slot side rails. It does not bolt to the bed rails or a bare bed. Not sure your cover qualifies? Call us at 1-888-651-3091 before ordering.
Sold in Canada by TruckTon, a Canadian-owned company with real phone support at 1-888-651-3091. Shipping is free anywhere in Canada. See all Arcane Warrior products.
